Name: GIS 1250A Power Distribution Cabinet for Power Generation Plants
Brand: Bosun
Price: 999 USD

Brand Name : Bosun

Certification : ISO9001, CE, CQC,CCC

Place of Origin : Chongqing

MOQ : 1

Price : 999 - 9999 USD

Payment Terms : T/T, L/C, Western Union

Supply Ability : 2000 PCS per Month

Delivery Time : 15 Working Days

Packaging Details : Wooden case

Product name : Power Distribution Cabinet

ODM/OEM : Accepted

Color : As required

Certificate : ISO,9001 CQC,CCC,CE

Payment : T/T L/C

Packing : Wooden Case

Contact Now

GIS Rated Current 1250A Power Distribution Cabinet for Power Generation Plants

Product Description

The high rated current of 1250A allows it to distribute high levels of electrical power from the generation sources within the power plant.
The SF6 gas provides excellent insulation, heat dissipation and arc quenching properties to safely handle high currents and voltages.
The metal enclosed cabinet provides protection against environmental factors like dust, moisture, pollution and weather.
The compact design optimizes the space utilized within the power plant and allows for easy installation• The GIS technology results in components inside the cabinet being placed very close together without risk of electrical faults.
The insulation properties of SF6 gas remain constant under all operating conditions, ensuring reliability of the distribution cabinet.
The livings parts inside the cabinet - like busbars and switchgear - are safely shrouded to prevent accidental contact during work.
The zero maintenance insulating medium and sealed-for-life design extend the service life of the distribution cabinet.
Monitoring systems constantly supervise critical parameters like SF6 gas pressure, temperature and humidity within safe operational limits.
The lack of any organic material and free air inside the cabinet makes it immune to corrosion and contamination.

Main Technical Parameters

Main Technical Parameters	Specifications
Rated voltage	40.5KV
Rated frequency	50Hz
Rated current of the main busbar	1250A, 1600A, 2000A
Rated insulation level 1min power frequency withstand voltage	95KV between phases and relative, 115KV for the first isolating joint
Lightning impulse withstand voltage	185KV between phases and relative, 215KV for the first isolating joint
1min power frequency withstand voltage of the auxiliary control circuit	2KV
Dimensions (widthdepthheight)	14002800(3000)2800
Rated current of branch busbar	630A, 1250A, 1600A

Advantages

1.Excellent quality

2.24 hour service

3.Professional design

4.Advanced technique

5.Rapid delivery

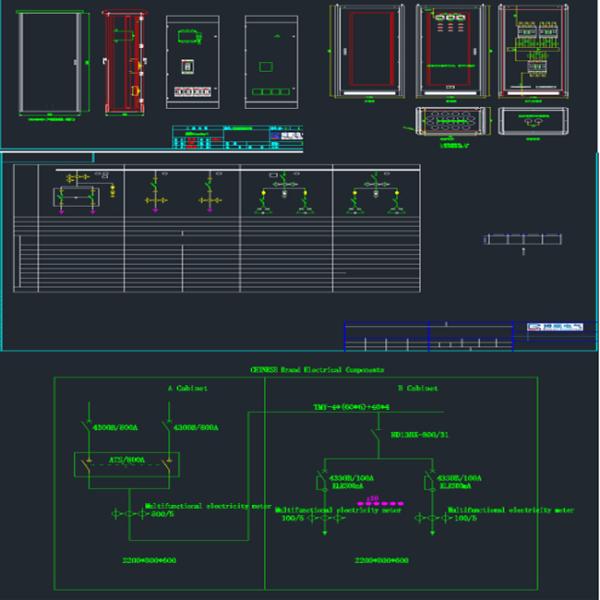

Design

Production Facilities
